INVERTER DIGITAL IGBT DOUBLE PULSE MIG WELDER
Category:
Summary：
Portable Battery charger for charging 12V/24V lead acid batteries.Protected against over-load. Assembled with amperemeters, indicating charging current at all time. Compact, light and portable. Suitable for cars, vans and light truck. Provide with complete kits. With both input protection and output protection through fuses.
keywords:
welder machine,machine,MIG
Service:
INVERTER DIGITAL IGBT DOUBLE PULSE MIG WELDER
Details
Features:
1, Adopt High performance digital technology , Synergic MIG, Pulse MIG, MMA, Lift-TIG welding mode
2. Weld material select : 100% Co2 solid wire, Aluminum wire welding material.
3. 0.6-0.8-1.0-1.2MM different welding wire
4. 2T/4T/4TL/SPOT choosen by user , inductance can be adjusted .
6.synergic control Digital display with very simple operations.

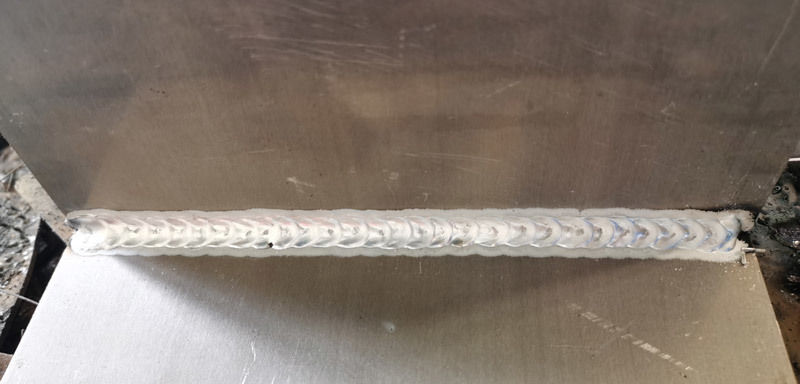

7, Speical good for AL welding
15AK TORCH WITH 3M CABLE, ELECTODE HOLDER WITH 2M CABLE, EARTH CLAMP WITH 2CABLE ,TELFON LINER,” U” Groove Roller
Technical Parameter
|
Model |
MIG-200 DP Y17 |
MIG-250 DP Y17 |
|
Rated input Voltage (V) |
220V-240V |
220V-240V |
|
Rated input power (KVA) |
7.4 |
8.5 |
|
Current range (MMA/TIG) (A) |
10~180 |
10~200 |
|
Current range (MIG) (A) |
30~200 |
30~230 |
|
Voltage range (MIG) (V) |
11~26 |
11~28 |
|
No-Load voltage (V) |
60 |
60 |
|
Wire Feed speed (m/min) |
2~15 |
2~15 |
|
Wire diameter (mm) |
0.6/0.8/1.0/1.2 |
0.6/0.8/1.0/1.2 |
|
Rated Duty Cycle (%) |
70 |
70 |
|
Frequency (Hz) |
50/60 |
50/60 |
|
Efficiency (%) |
85 |
85 |
|
Pulse Frequency (Hz) |
0.5-5.0Hz |
0.5-5.0Hz |
|
Power Factor |
0.75 |
0.75 |
|
Protective class |
IP21S |
IP21S |
|
Dimension (mm) |
490*220*390 |
490*220*390 |
|
Weight (Kg) |
15 |
16 |
1. Portable Battery charger for charging 12V/24V lead acid batteries.Protected against over-load.
2.Assembled with amperemeters, indicating charging current at all time.
3.Compact, light and portable.
4. Suitable for cars, vans and light truck.
5.Provide with complete kits.
6.With both input protection and output protection through fuses.
